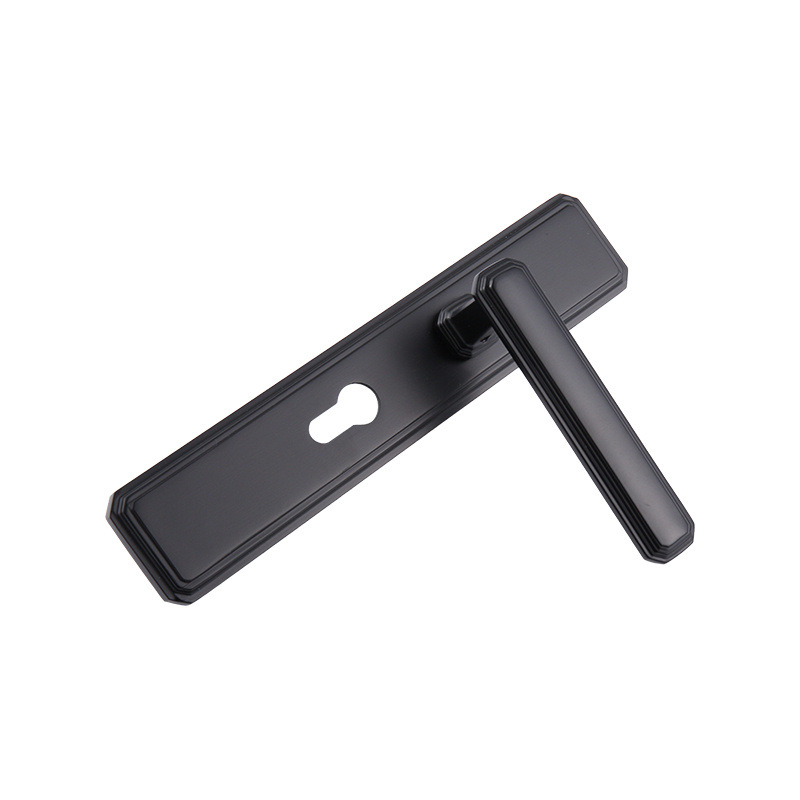

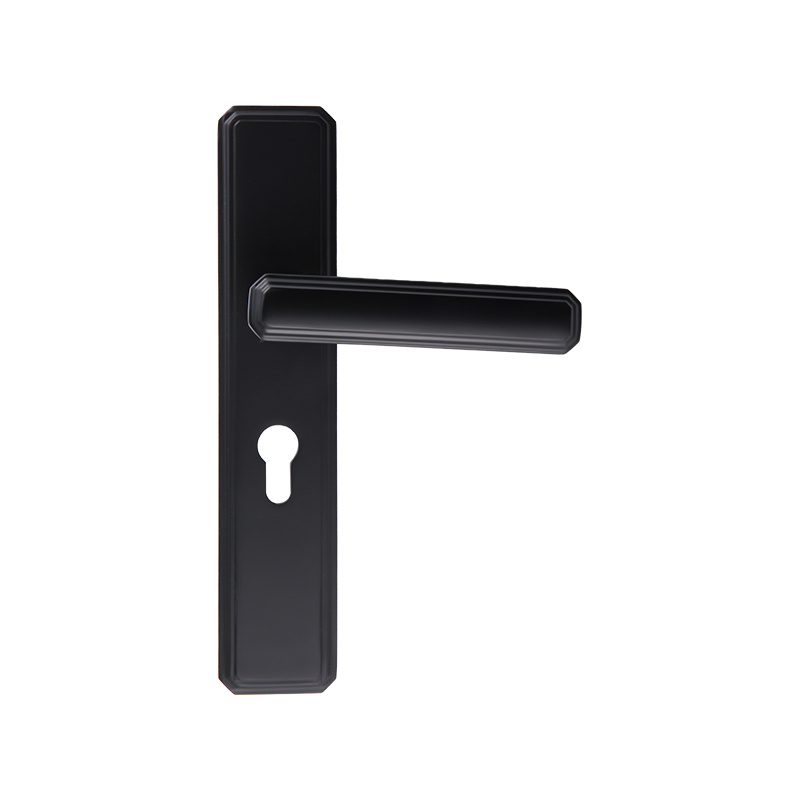

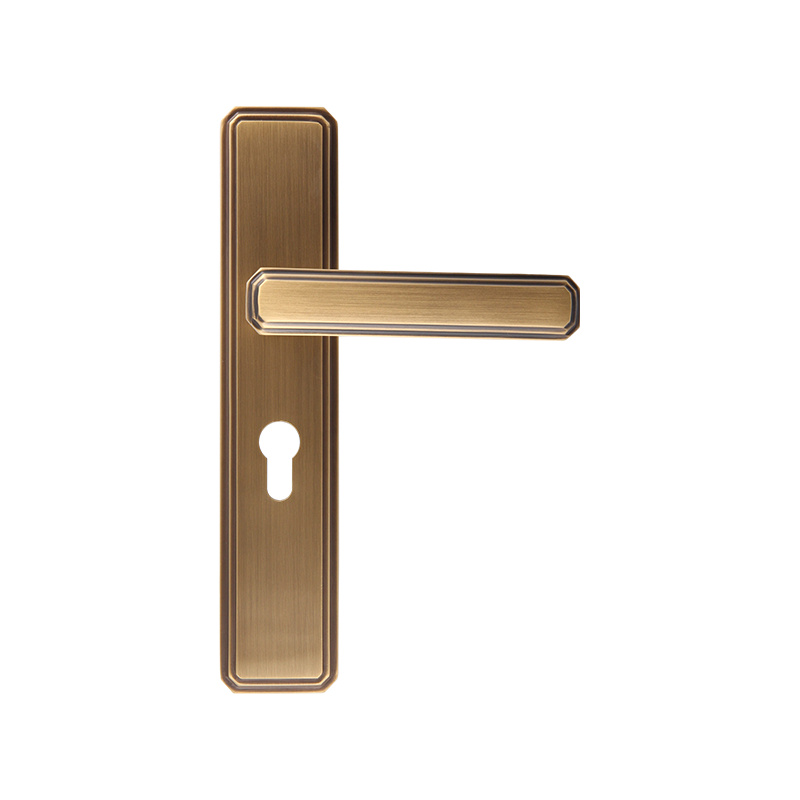

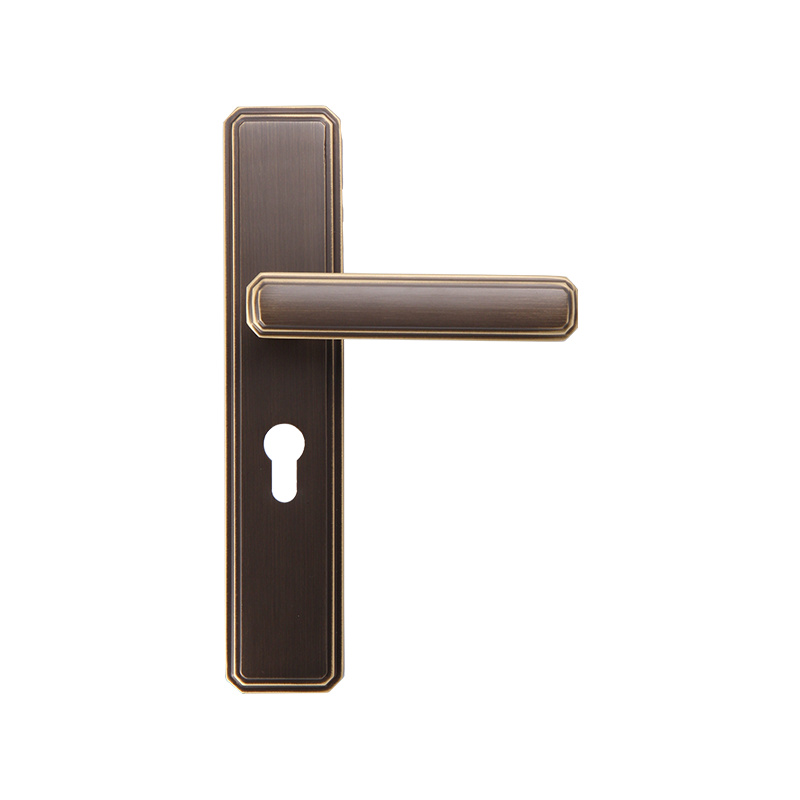

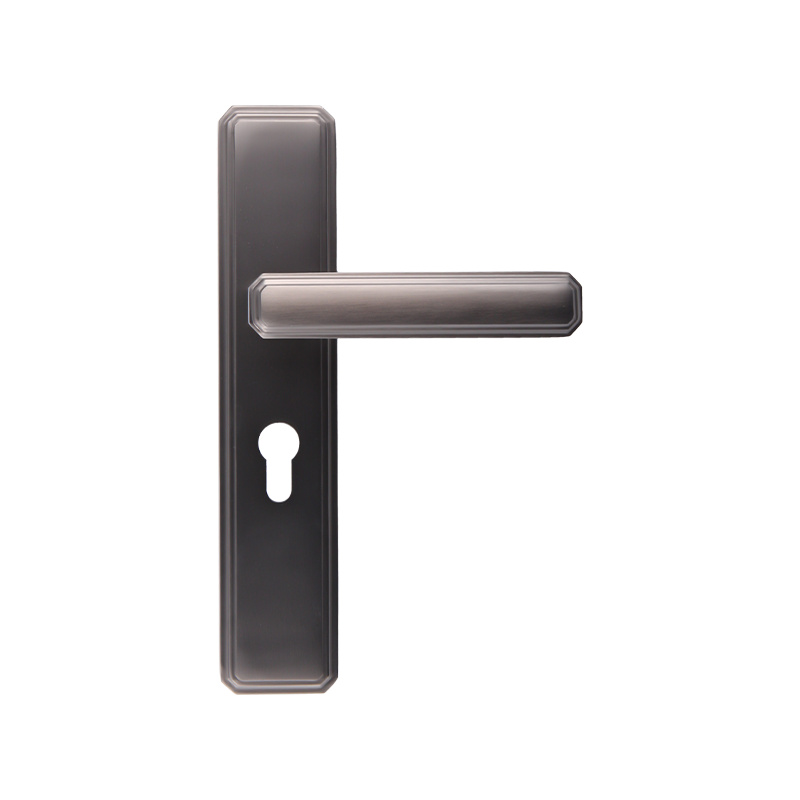

518-018 All-copper Chinese style simple multi-sided corner lock

Product description

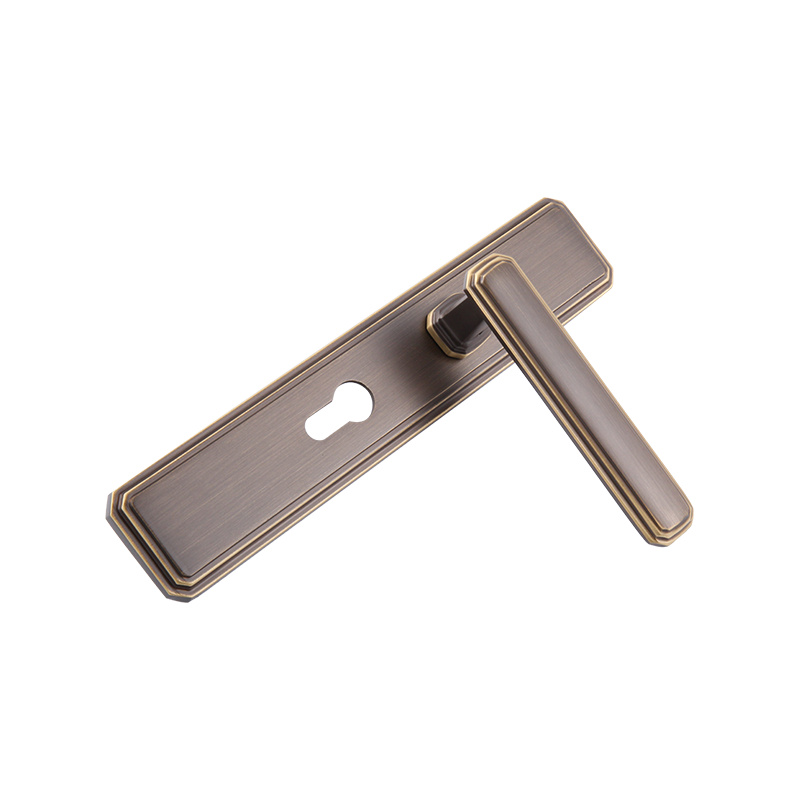

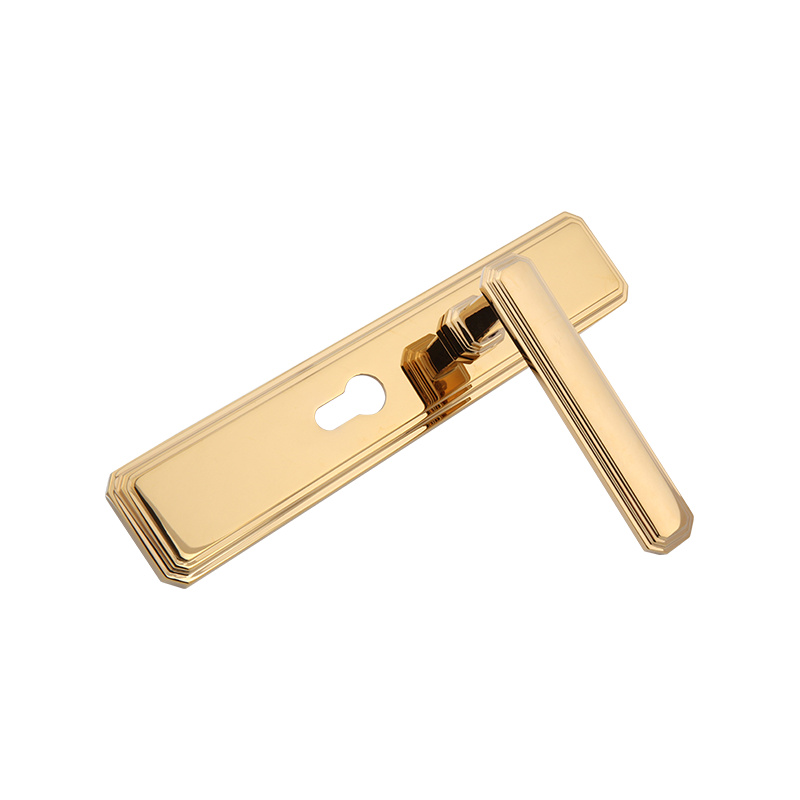

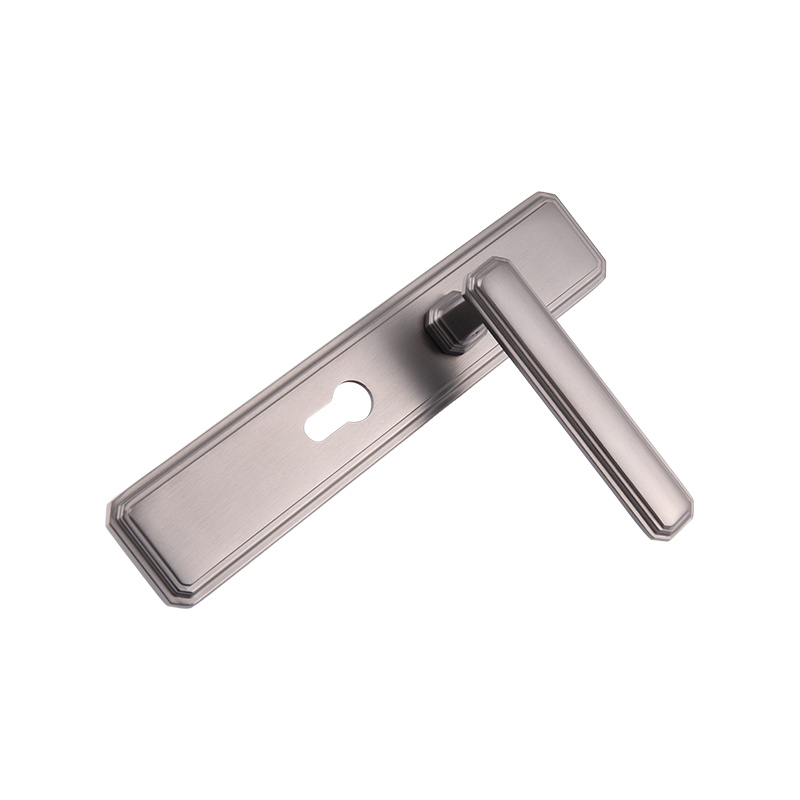

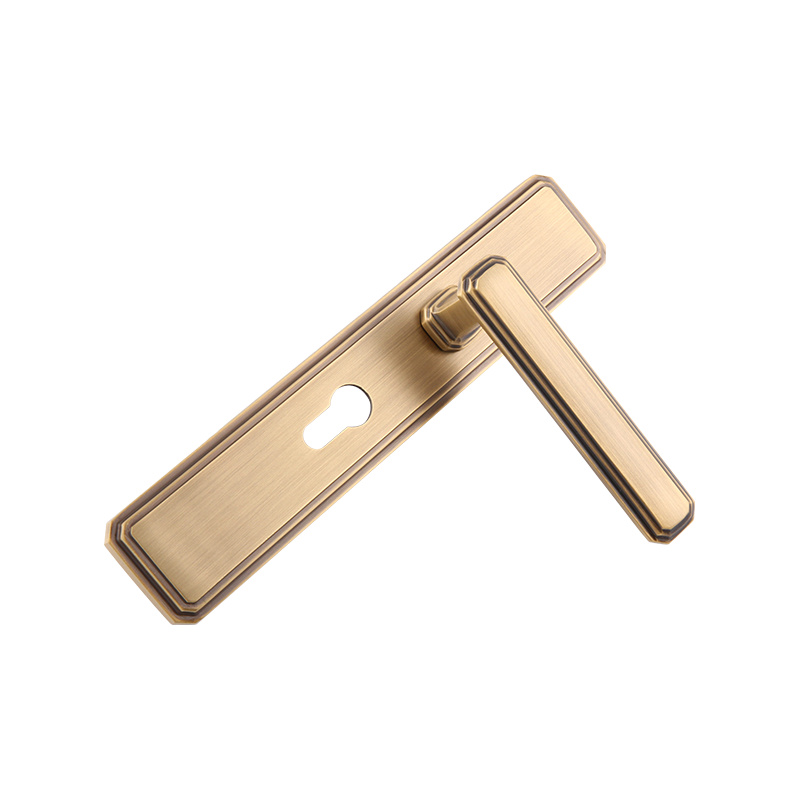

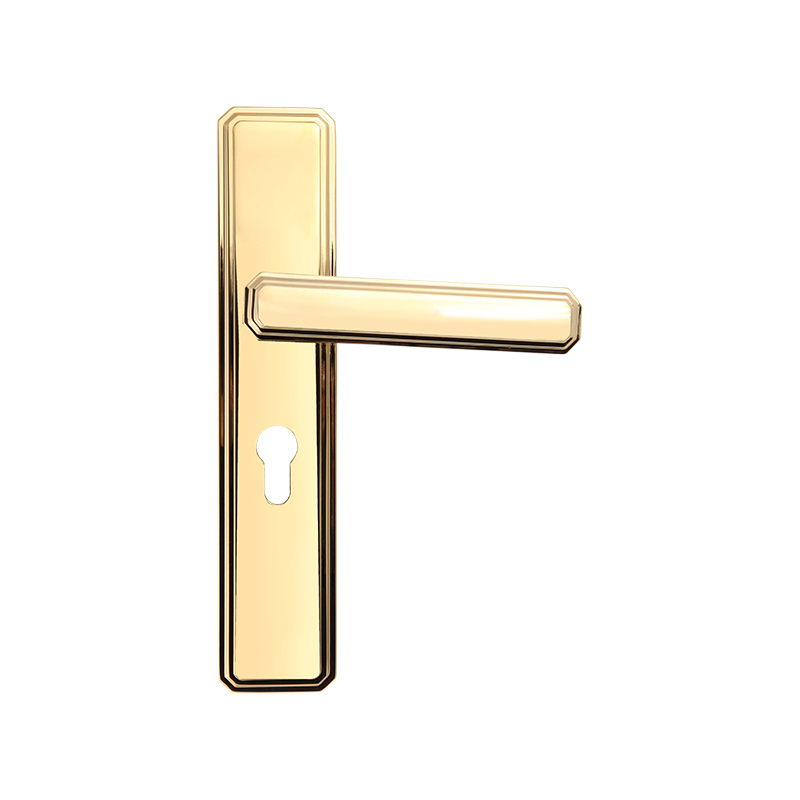

The 518-018 All-Copper Chinese Simple Multi-sided Angular Lock combines traditional Chinese style with a simple design aesthetic, featuring multi-sided edges that offer a unique sense of art and aesthetic enjoyment. Crafted primarily from all-copper material and refined through meticulous craftsmanship, this lock emanates a strong classical atmosphere and elegant taste. The appearance showcases distinctive multi-sided edges, enhancing both durability and ornamental value, providing users with a unique and visually pleasing experience.

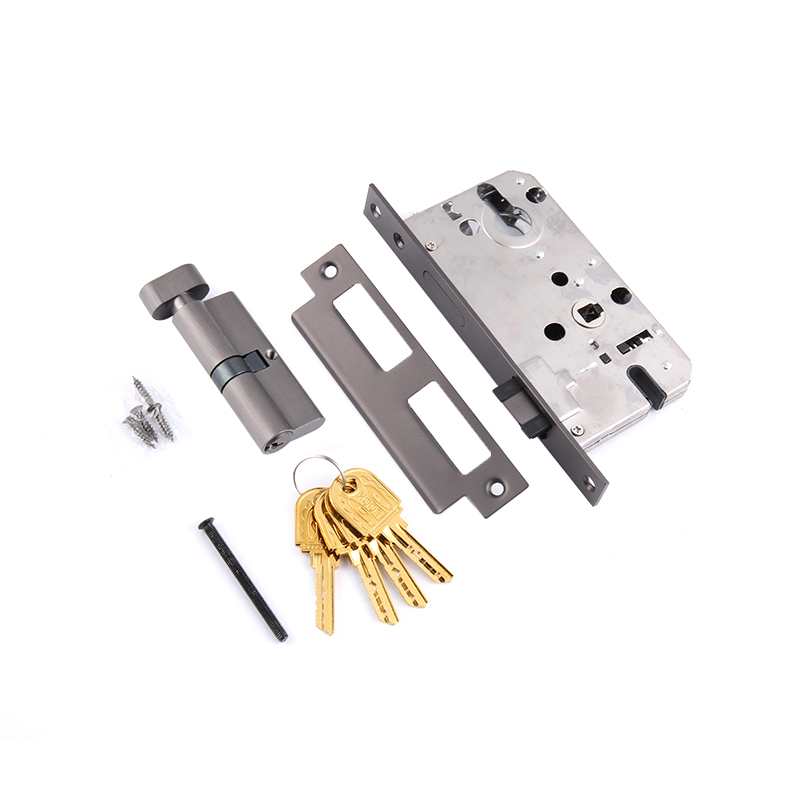

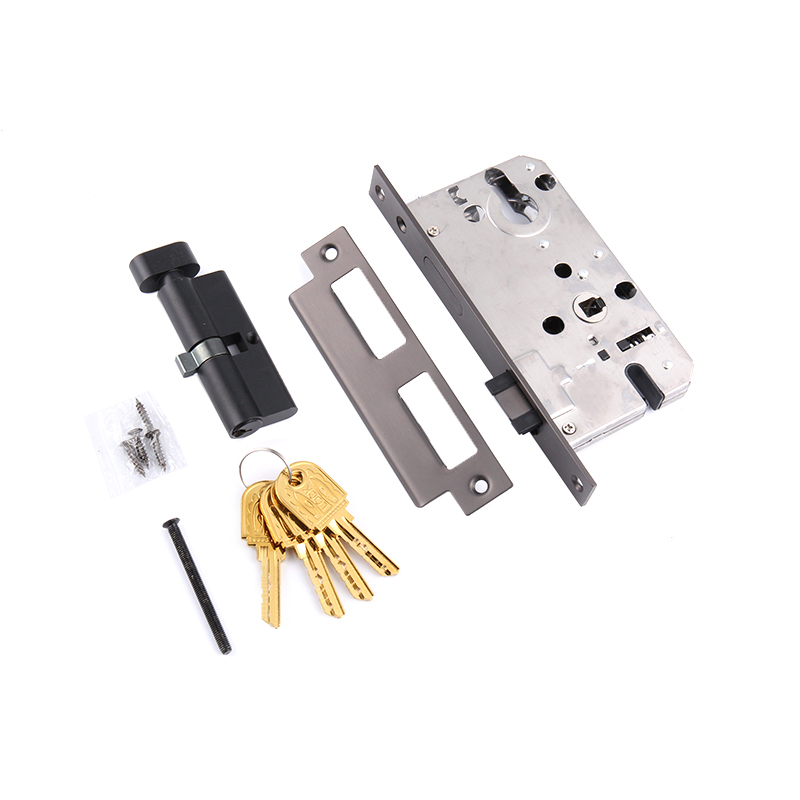

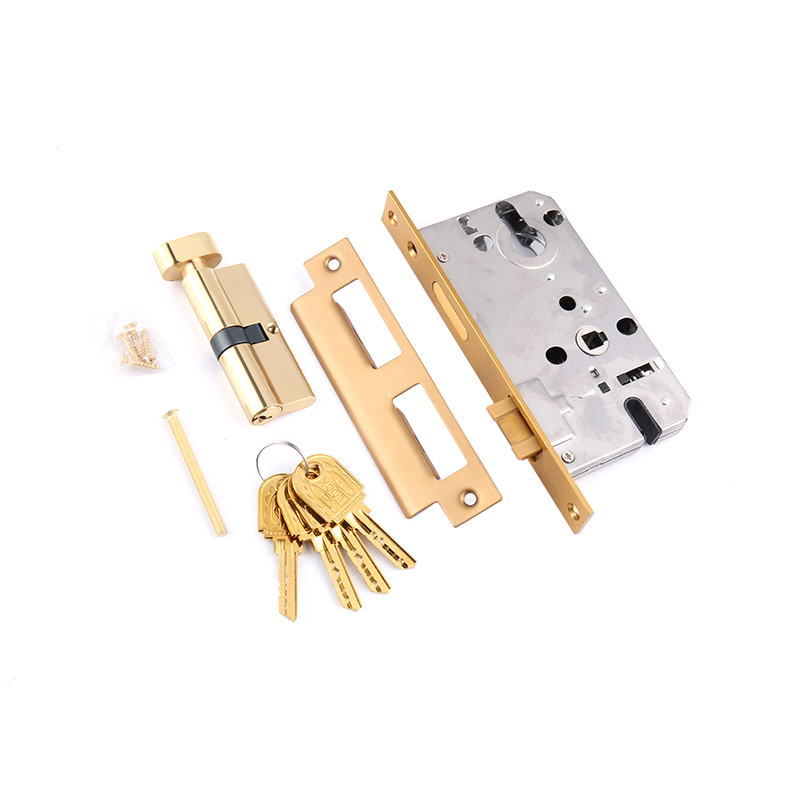

One-piece lock installation method
1) Install this after the door and door frame have been painted and dried.
(2) Drill a hole in the door according to the product size

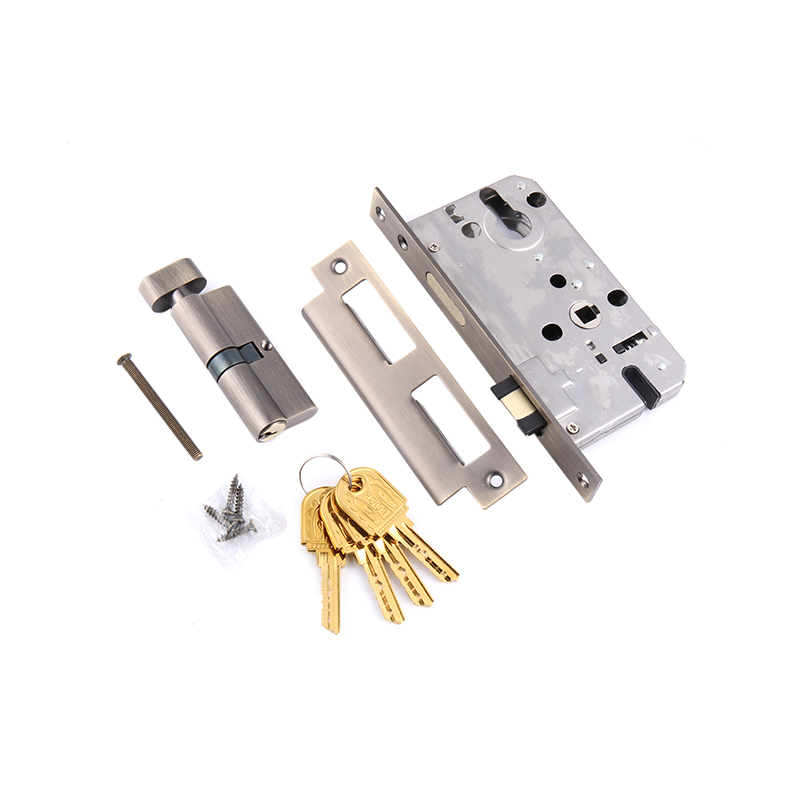

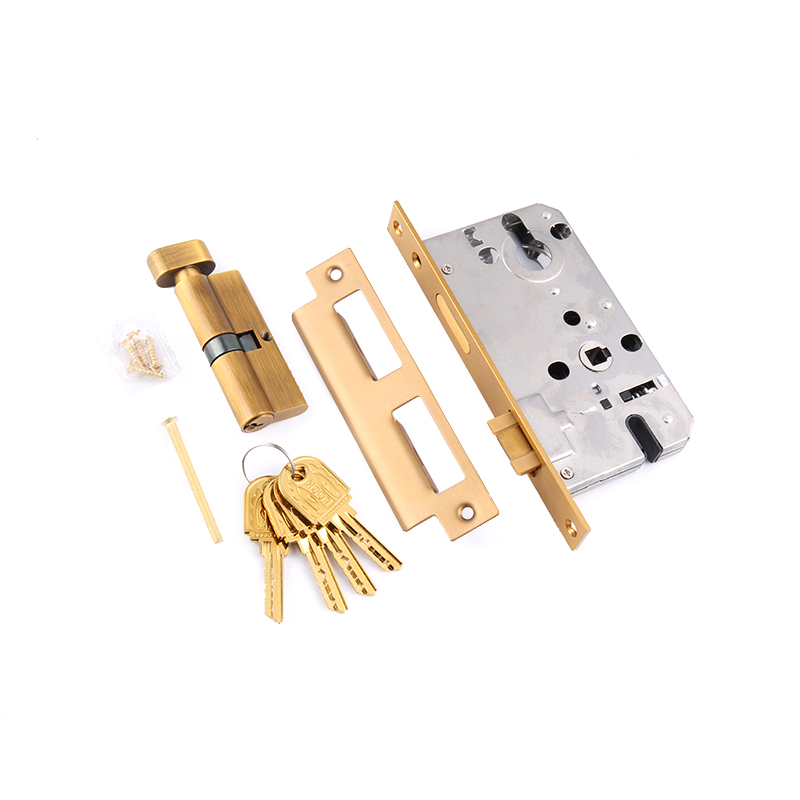

(3) Adjust the direction of the lock body tongue according to the door opening direction and install the lock body on the door
(4) Insert the handle into the panel and adjust the clearance. According to the door opening direction, determine the direction of the handle rotation, install the inner and outer panels on the door, and tighten them with the panel connection screws (M4X40).
(5) Install the lock head and tighten it with the lock head screws (M5X50).
(6) Drill a hole in the door frame according to the height of the lock body and install the lock box and lock plate.
(7) Do not use any corrosive solvents for cleaning. It is better to wipe it gently with a dry or wet soft cloth to maintain a permanent gloss.
